TP-N-502MLV -2 Wire Electric Heat Mechanical Thermostat
TP-N-502MLV -2 Wire Electric Heat Mechanical Thermostat

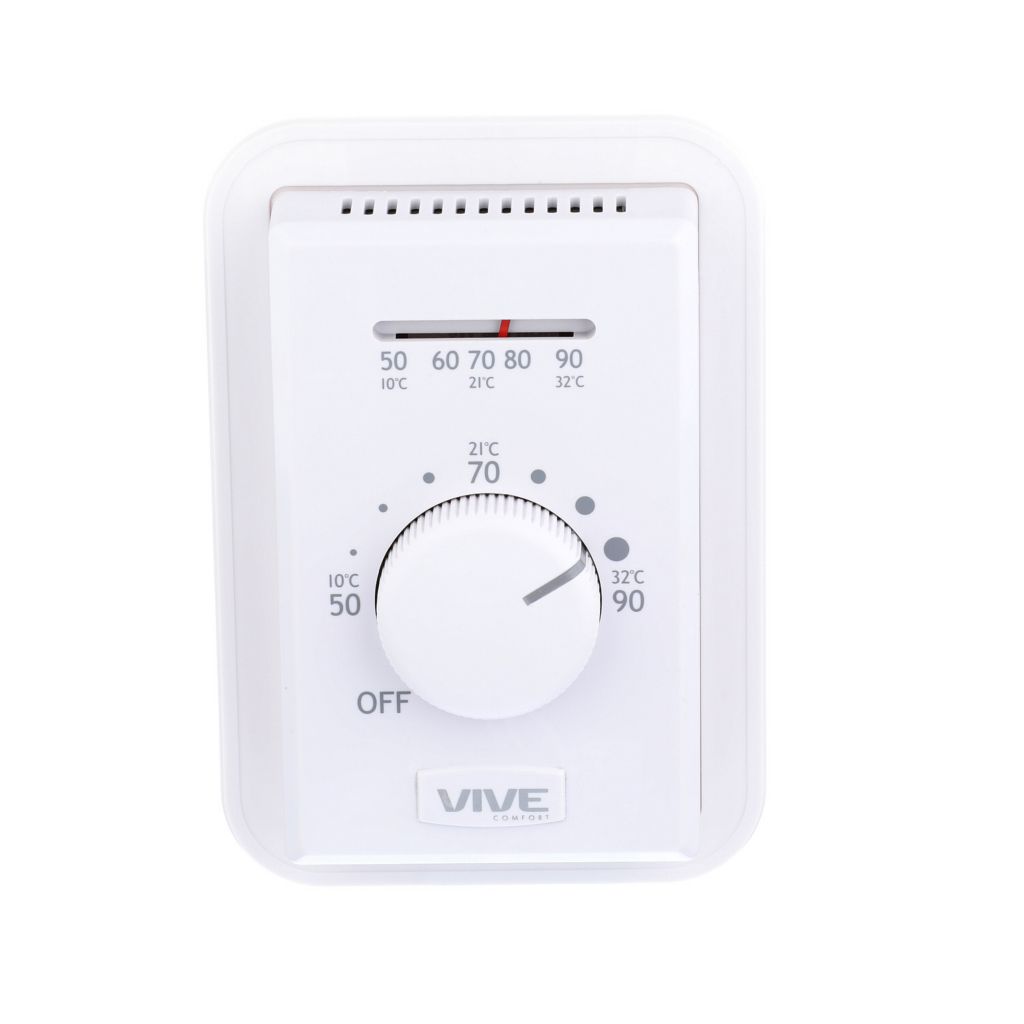

VIVE™ Two-wire Non-Programmable Electric Heat Thermostat mounts on the wall or junction box and is great for baseboard heaters.Features:Ambient temperature DisplayPositive off switchSimple single dial control2-year warranty
Product Specifications
Product Specifications
SKU:
TP-N-502MLV
Color:
White
Country of Origin:
MEX
Cubic Measurement:
0.0289
Dimensional Weight:
1
Electrical Rating:
22A/120VAC; 22A/240VAC;19A/277VAC
Mounting Type:
Vertical
OPT Code:
PT501ML2
Prop 65:
No
Temperature Range:
50°F to 90°F (10°C to 32.22°C)
Voltage:
120/277 VAC
Weight:
0.5
